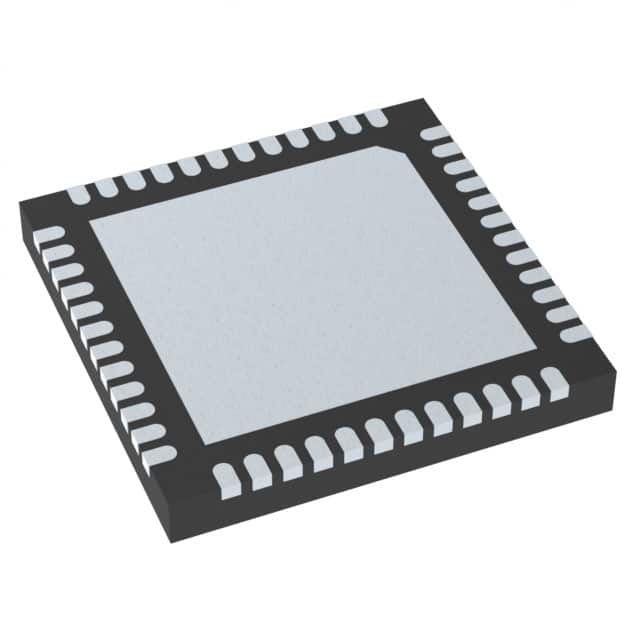

Name: IC POWER
Brand: Texas Instruments
SKU: TPS536C7B1RSLR
Availability: OutOfStock
Rating: 4.7 (3 reviews)

TPS536C7B1RSLR

Price: Price on request ~~0.00 $~~ (Excl. VAT)

Brand :Texas Instruments
Product SKU :TPS536C7B1RSLR
Description :IC POWER
Condition: Original New

Product Condition Guide

Original New Current

100% original and unused. 1-year warranty.

Used

Tested working. 90-day warranty.

Refurbished

Restored and tested. 90-day warranty.

Pulled

Removed and tested. 90-day warranty.

New Surplus

Unused excess stock, packaging may vary. 1-year warranty.

| Warranty: 1 Year
Quantity : In Stock () Stock on request
ECAD Model :

ISO 9001:2015 Certified No. 80426Q00050R000

MfrTexas Instruments
SeriesD-CAP+™
PackageTape & Reel (TR)
Product StatusActive
Output TypePWM
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Number of Outputs12
Output Phases12
Voltage - Supply (Vcc/Vdd)4.5V ~ 18V
Frequency - Switching300kHz ~ 2MHz
Duty Cycle (Max)50%
Synchronous RectifierNo
Clock SyncYes
Serial InterfacesPMBus
Control FeaturesCurrent Limit, Enable, Frequency Control, Phase Control, Ramp, Soft Start
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case48-VFQFN Exposed Pad
Supplier Device Package48-VQFN (6x6)
