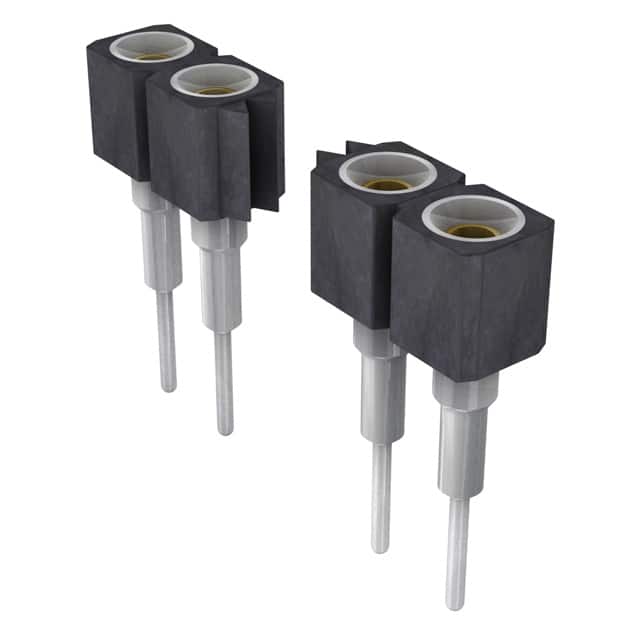

Name: CONN SOCKET 22POS 0.1 GOLD PCB
Brand: Preci-Dip
SKU: 316-83-122-41-018101
Availability: OutOfStock
Rating: 4.7 (3 reviews)

316-83-122-41-018101

Price: Price on request ~~0.00 $~~ (Excl. VAT)

Brand :Preci-Dip
Product SKU :316-83-122-41-018101
Description :CONN SOCKET 22POS 0.1 GOLD PCB
Condition: Original New

Product Condition Guide

Original New Current

100% original and unused. 1-year warranty.

Used

Tested working. 90-day warranty.

Refurbished

Restored and tested. 90-day warranty.

Pulled

Removed and tested. 90-day warranty.

New Surplus

Unused excess stock, packaging may vary. 1-year warranty.

| Warranty: 1 Year
Quantity : In Stock () Stock on request
Datasheet :316-83-122-41-018101 Datasheet
ECAD Model :

ISO 9001:2015 Certified No. 80426Q00050R000

MfrPreci-Dip
Series316
PackageBulk
Product StatusActive
Connector TypeSocket
Contact TypeFemale Socket
StyleBoard to Board
Number of Positions22
Number of Positions LoadedAll
Pitch - Mating0.100" (2.54mm)
Number of Rows1
Row Spacing - Mating-
Mounting TypeThrough Hole
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - Mating29.5µin (0.75µm)
Insulation ColorBlack
Insulation Height0.276" (7.00mm)
Contact Length - Post0.126" (3.20mm)
Operating Temperature-55°C ~ 125°C
Material Flammability RatingUL94 V-0
Contact Finish - PostTin
Mated Stacking Heights-
Ingress Protection-
Features-
Current Rating (Amps)3A
Voltage Rating-
Applications-
Insulation MaterialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact ShapeCircular
Contact MaterialBeryllium Copper
Contact Finish Thickness - Post-
Base Product Number316-83
