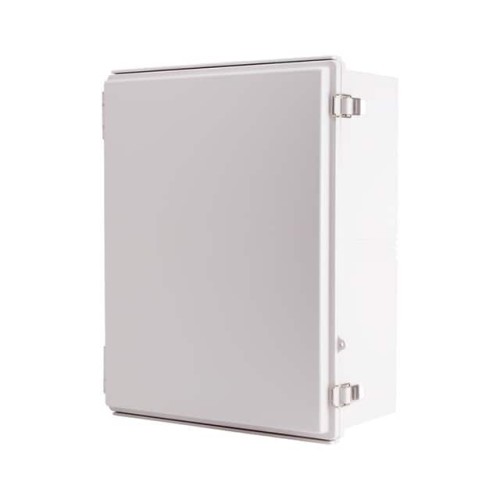

Reliability standards and qualifications relevant to this component are primarily governed by the enclosure's structural integrity and material properties. For a BOX ABS GRAY 19.685"L X 15.748"W (Brand: Boxco, SKU: BC-AGP-405020), the key standards include UL 94 for flammability (typically V-0 or V-2 for ABS), and IP ratings (e.g., IP54, IP65) for ingress protection against dust and moisture. The ABS material should comply with RoHS and REACH directives for environmental safety. Qualification testing often involves verifying dimensional accuracy per manufacturer specifications, impact resistance (e.g., ASTM D256 for Izod impact), and thermal stability (HDT under load per ASTM D648). Boxco should provide a Certificate of Conformance (CoC) and may reference IEC 60068-2 series for environmental tests like dry heat (IEC 60068-2-2) or damp heat (IEC 60068-2-78).
Accelerated life testing (ALT) for an ABS enclosure focuses on material degradation rather than electronic failure. Typical ALT methods include exposure to elevated temperature (e.g., 70°C to 85°C) and humidity (e.g., 85% RH) in a chamber for 1000 hours, simulating years of real-world aging. Results are interpreted through Arrhenius modeling: a 10°C increase in temperature roughly doubles the reaction rate, so a test at 85°C may equate to 5-10 years at 25°C. Key failure modes include cracking, warpage, or color fading. A pass means no structural or aesthetic defects, indicating the ABS compound has adequate thermal and UV stability for the intended lifetime.
Failure rate calculations (FIT rates) and MTBF considerations are less applicable to a passive enclosure than to active electronics, but they are still relevant for system-level reliability. For the box itself, mechanical failure rates are often expressed as failures per million hours (FIT) based on stress factors like temperature cycling and vibration. A typical ABS enclosure might have a FIT rate of 50-200, though this is proprietary data. MTBF is calculated as 1,000,000,000 / FIT (hours), so a 100 FIT value yields an MTBF of 10 million hours. However, for an enclosure, MTBF is more meaningful when combined with the assembled components. Use MIL-HDBK-217F or Telcordia SR-332 for guidance, but note that the box’s material degradation is better modeled by fatigue curves from ASTM D7774.
Environmental stress screening (ESS) and burn-in procedures for a plastic enclosure focus on detecting latent defects like stress cracks or dimensional instability. A recommended ESS profile includes thermal cycling: -40°C to +85°C for 10 cycles, with a ramp rate of 10°C/min and a 30-minute dwell. This reveals weak points from molding or assembly. Vibration screening (e.g., random vibration at 5-50 Hz for 30 minutes per axis) can identify loose fasteners or poor weld lines. Burn-in is less common for enclosures but can involve 48 hours at 60°C to accelerate diffusion of absorbed moisture. Any cracking, deformation, or discoloration post-screening is a fail. Document results with pass/fail criteria per IPC-9592B.
Counterfeit detection methods specific to this component type are critical as enclosures are sometimes relabeled or made with substandard ABS. Visual inspection under magnification (10x-40x) for poor mold finish, flash, or uneven texture indicates non-original molding. Weight verification: genuine Boxco BC-AGP-405020 should match the datasheet weight within ±2%. Material analysis via Fourier-transform infrared spectroscopy (FTIR) can confirm ABS resin composition. Check for missing or altered serial numbers, logos, or date codes; Boxco uses laser etching that is uniform and durable. Compare packaging (Boxco uses anti-static poly bags with barcode labels) against known good samples. A simple solvent test (e.g., acetone for 30 seconds) on a non-critical area—genuine ABS softens, while cheap fillers may dissolve or crack.
Incoming inspection best practices should follow a defined sampling plan (e.g., ANSI/ASQ Z1.4, AQL 1.0 for critical defects). Check dimensions: length 19.685" ±0.020", width 15.748" ±0.020", depth as per spec. Verify color (RAL 7035 gray) using a colorimeter or visual standard. Inspect for surface defects: scratches, dents, or burrs >1mm. Test panel fitment and screw hole alignment with a mating lid or accessory. Perform a drop test from 1 meter onto concrete—no cracks or permanent deformation. Document results on an inspection form with photos. For high-volume orders, measure melt flow index (MFI) from a sample to confirm material consistency.
Storage and handling requirements to maintain reliability include storing enclosures in a clean, dry environment at 15-30°C and 30-70% RH, away from UV light (which degrades ABS). Use original packaging or anti-static bags to avoid dust and electrostatic discharge (ESD) damage to internal electronics later. Stacking height should not exceed 3 feet to prevent warping. Handle with clean gloves to avoid oil contamination; ABS is sensitive to solvents like acetone or gasoline. Avoid prolonged exposure to temperatures above 60°C. For long-term storage (>1 year), periodically rotate stock to avoid creep deformation. Label stock with date of receipt and recommended use-by date (typically 5 years from manufacture).
End-of-life management and obsolescence planning for the Boxco BC-AGP-405020 involves monitoring the manufacturer’s lifecycle status. Boxco typically provides 12-18 months’ notice before discontinuation. As a procurement professional, maintain a buffer stock of 20-30% of annual usage to cover the transition period. Identify alternative form-fit-function enclosures from other brands (e.g., Hammond, Bud) that meet the same IP rating and dimensions. For critical applications, negotiate a last-time buy (LTB) and secure a 5-year supply. After EOL, consider reverse logistics for recycling ABS (marked with recycling code #7). Update your BOM with obsolescence risk scores, and engage Boxco’s sales team for custom re-run if demand justifies. Document all actions in an Obsolescence Management Plan per IPC-1752.
